Excavator wheel loader use effective Rotating screening bucket
The MSB bucket comes equipped with an interchangeable mesh system around the drum inner circumference and replaceable sections in the conical rear area of the drum. Four models are offered to fit mini diggers from 6 tonne to 36 tonne excavator. Suittable for top-soil, quarried stone, remediation of contaminated soils beaches, demolition waste and green recycling duties. The MSB series is just at home clearing on a demolition site or in the quarry cleaning and sizing stone.
Product Features
Model
MB-08
MB-12
MB-15
MB-16
MB-18
Length(mm)
950
1380
1650
1850
2380
Width(mm)
650
1050
1200
1490
1800
Height(mm)
850
1280
1460
1860
2280
Screen Length(mm)
610
680
720
980
1200
Screen Diameter(mm)
540
780
1040
1360
1620
Oil pressure(mpa)
10
12
12-15
15-23
22-25
Oil flow (L/min)
20
45
56
63
63
Weight (kg)
163
560
620
1590
2150
Machine class(T)
2-5
6-12
12-20
20-26
26-36

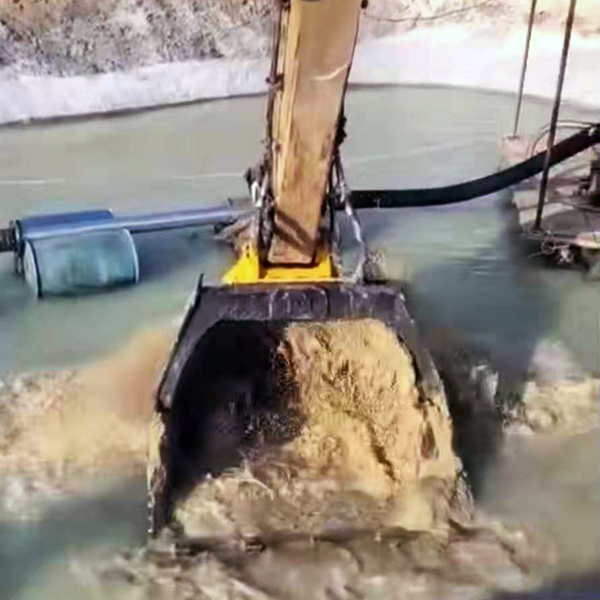

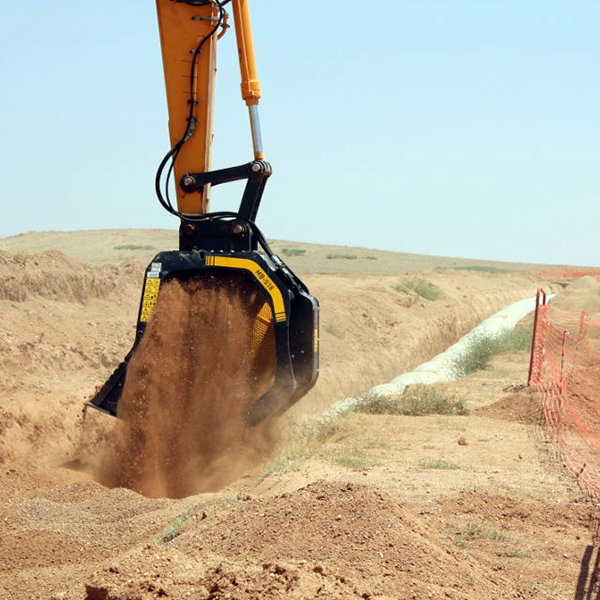

Preliminary screening of waste materials, demolition, excavation and re-filling, and soil rebuilding of rocky land. The screening bucket is suitable for sorting natural materials before and after comminution, reducing the comminution time by 60%, so that materials that are compatible with the type of processing required can be recycled and managed. With the inching hydraulic system, even wet materials can be screened, increasing production by 30% year-on-year. It is suitable for gravel screening and beach cleaning in waterways. It is a good assistant for screening fine debris blocks. The size of the sorting screen can be adjusted by changing the screen. Screen sizes from 10mm to 150mm are available. Can be made according to customer needs.
1. The mesh hole is not easy to block. 2. The operation is stable and the noise is low. 3. Simple structure and convenient maintenance. 4. The screening cylinder can be rotated forward and backward for easy screening. 5. The reliability of the whole machine is high, and the one-time investment is less. 6, the use of special mesh, high screening efficiency, long service life.
