Cutting-Tools

hydraulic shear

Product ID：Cutting-Tools
QQ：Whatsapp:+8613853778627
Phone: 086-13853778627
Tel: 086-18305371238
Email: lina@cnznzb.com
Time: 2022-05-17 09:37
FEEDBACK

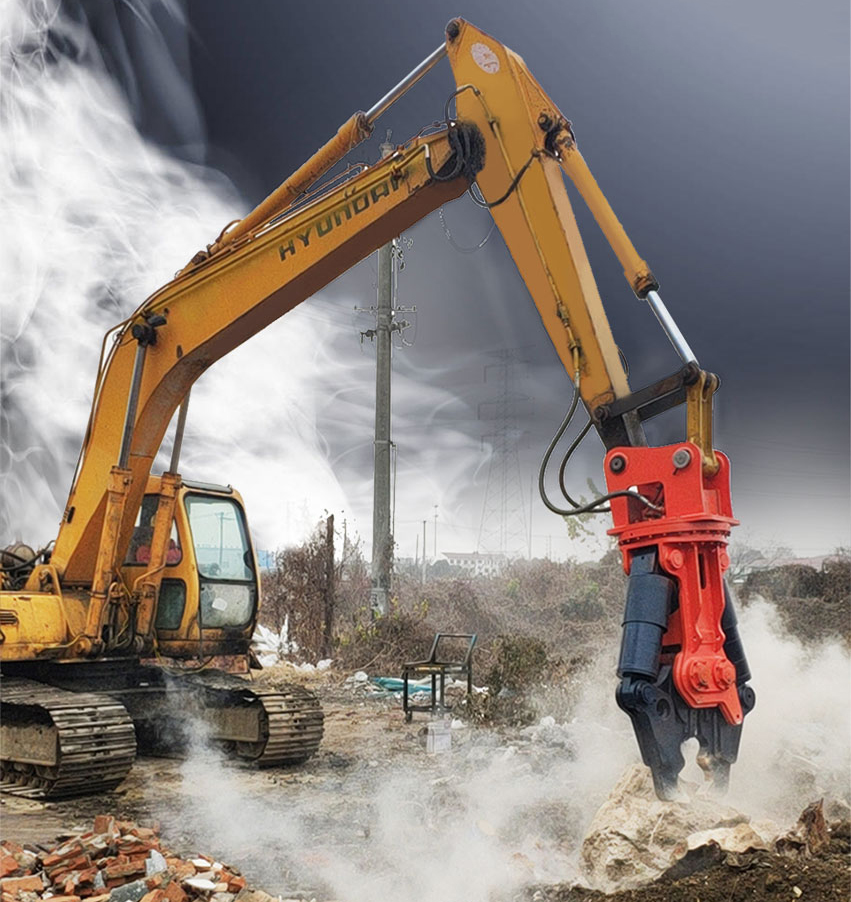

Excavator multifunctional hydraulic shear is the ideal tool in the rescue process.Double oil cylinder body is equipped with a variety of different structure of jaw,realizing the separation, shearing removing in the rescue process,making the rescue higher working efficiency.Double oil cylinder is with large opening design,so the work is easy,convenient ,flexible operation,and ensure powerful motivation of equipment.Work efficiency is two to three times of broken hammer,fully mechanized,safe and saving time.

In recent years, with the continuous development of urbanization in our country, construction land resources in urban have been relatively scarce. In order to increase the utilization rate of urban land, our country‘s current urban buildings are constantly developing towards a high level development, which gradually formed a major trend. With the acceleration of the new urbanization process, new construction, reconstruction, expansion, and demolition activities have produced a large amount of construction waste,…

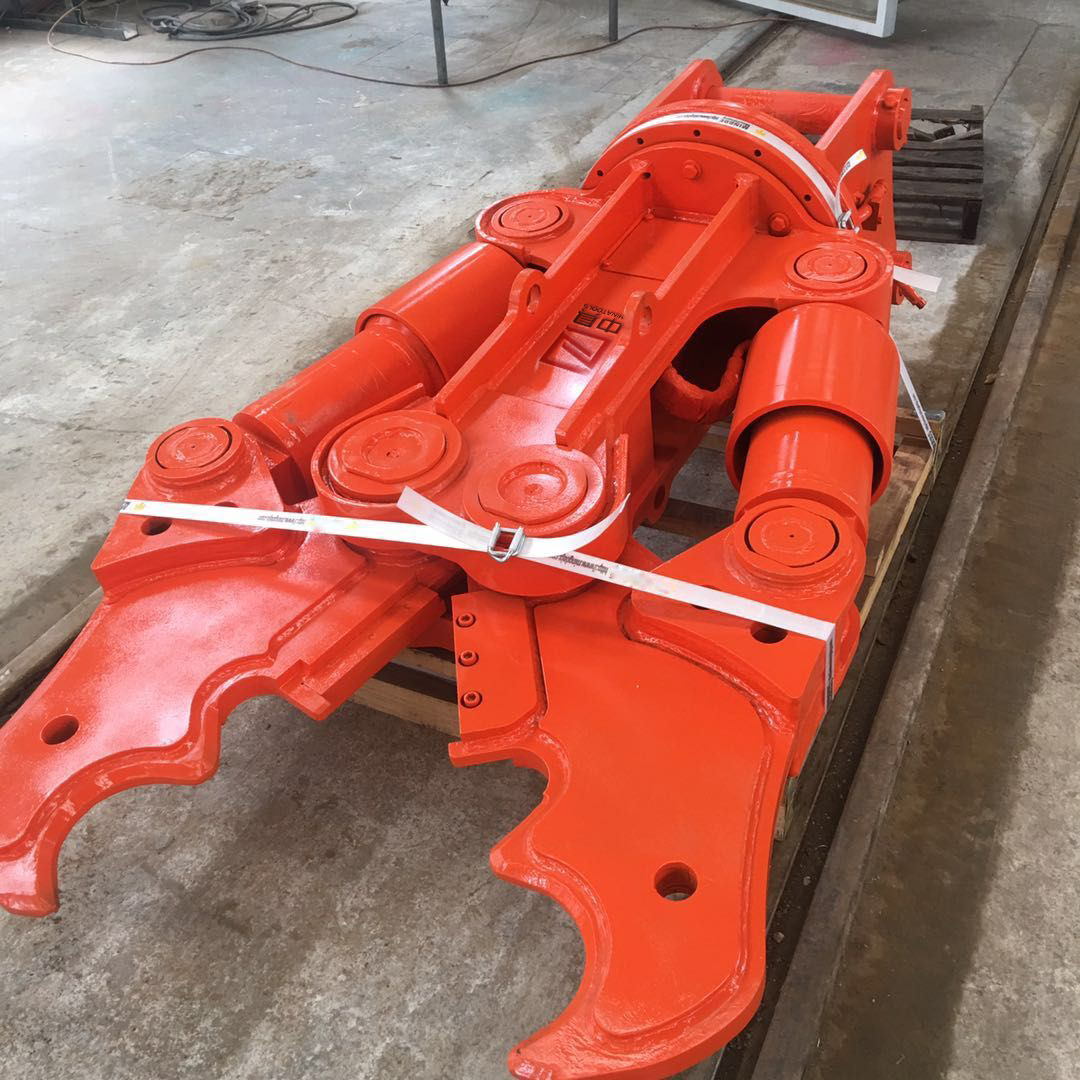

Product features:

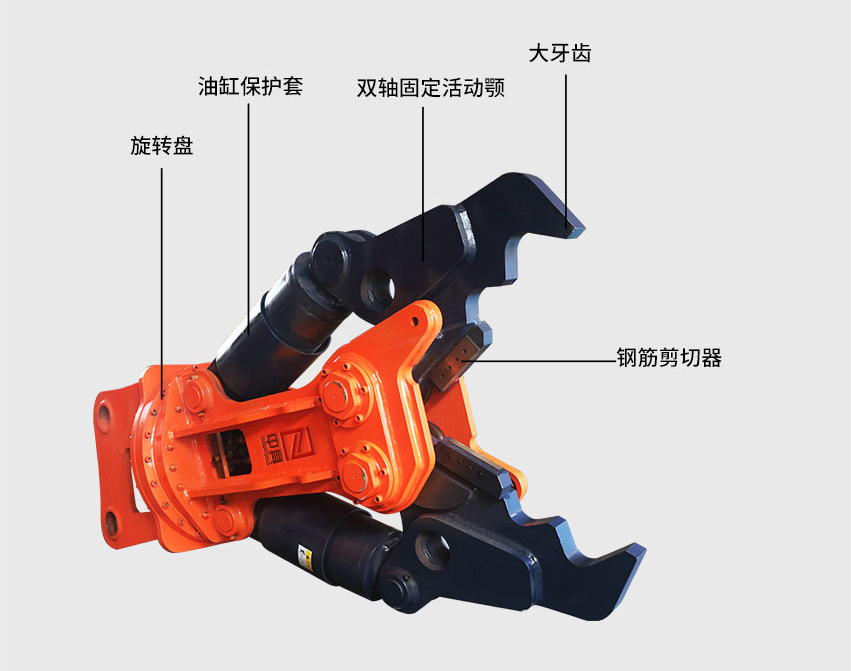

1. Large opening, large-diameter cylinder with large bite force, can achieve 360 degrees rotation: using three-groove slewing support, to make the turntable more stable, and more flexibly with the built-in plane bearing rotating.

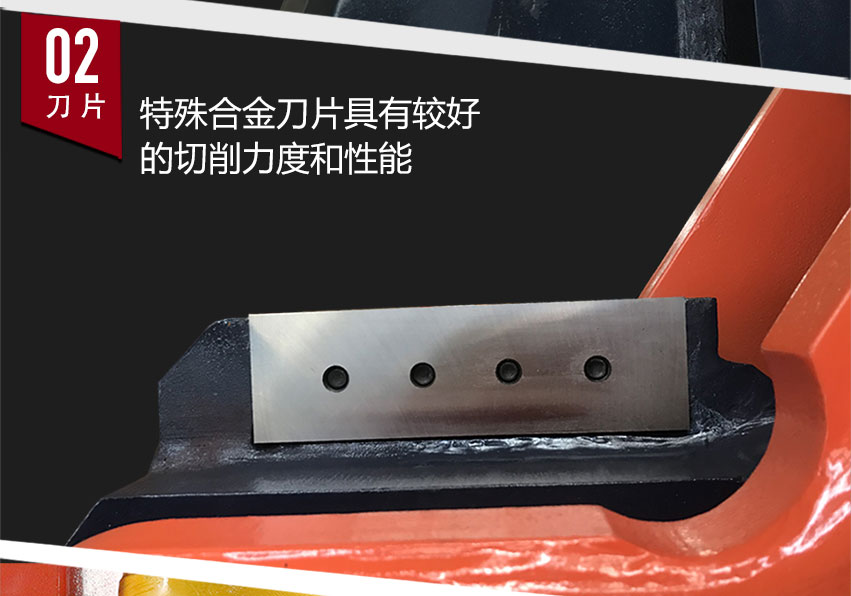

2. Equipped with steel bar cutting blades, the hydraulic shears can cut the exposed steel bars when working, making the crushing operation more efficient.

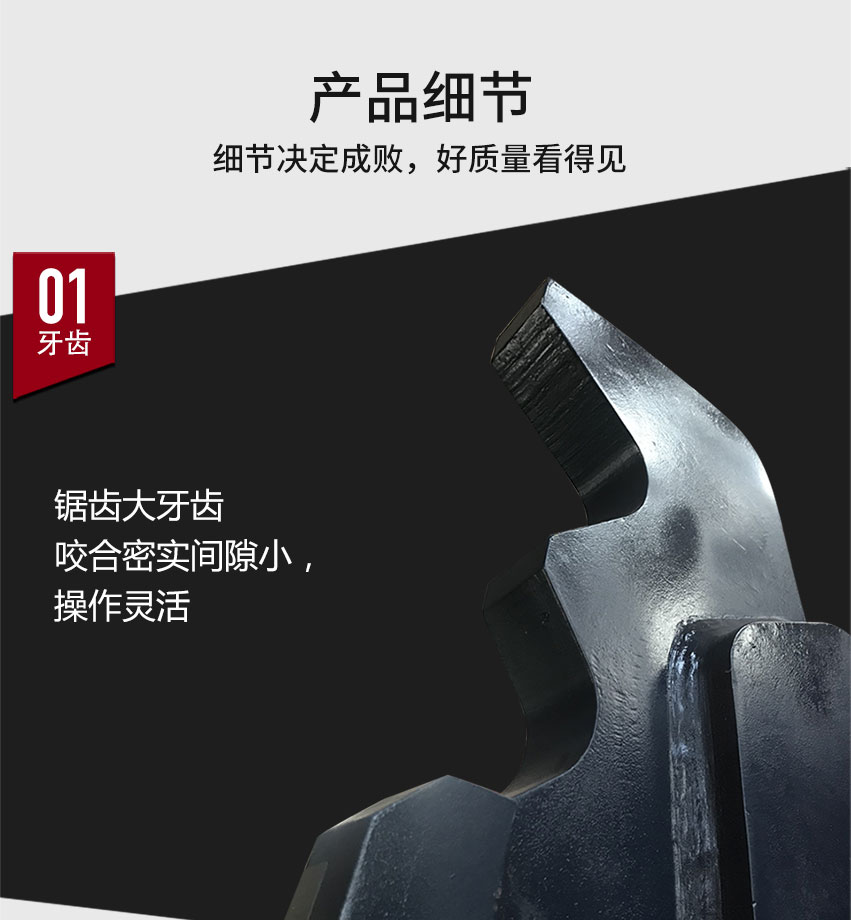

3. Double jaws, made of high-hardness and wear-resistant steel, which has high wear resistance to lead to longer service time and higher economic benefits.

4. The hydraulic oil cylinder is equipped with a protective cover to block the splashing debris of concrete blocks and steel bars. The oil circuit is specially designed to make the pipeline simpler and easier to maintain.

5. The oil passage acceleration valve is installed to make the biting speed more faster, improving work efficiency

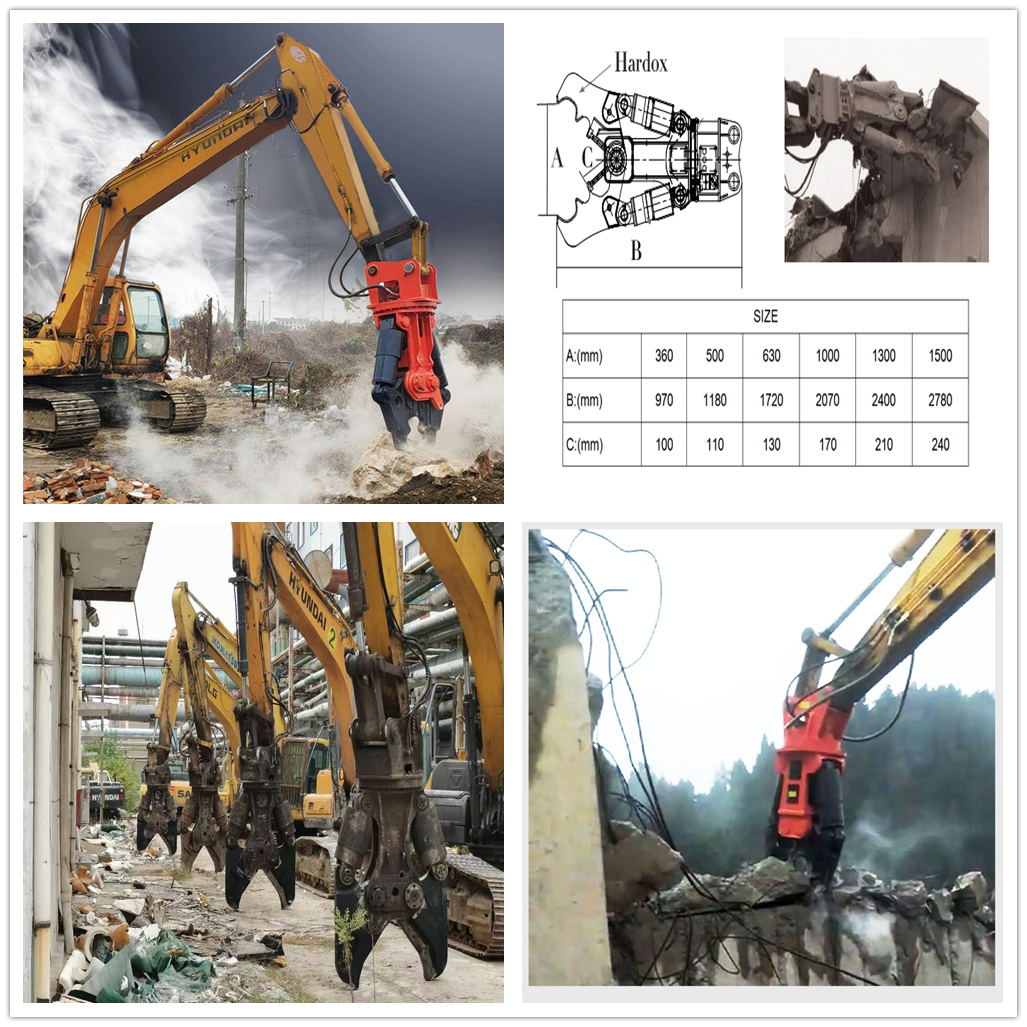

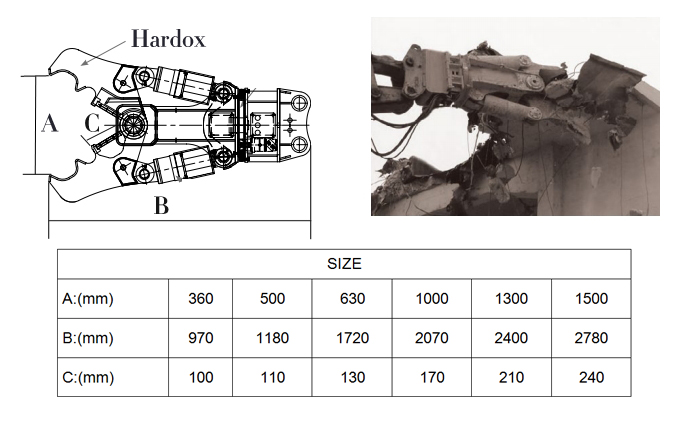

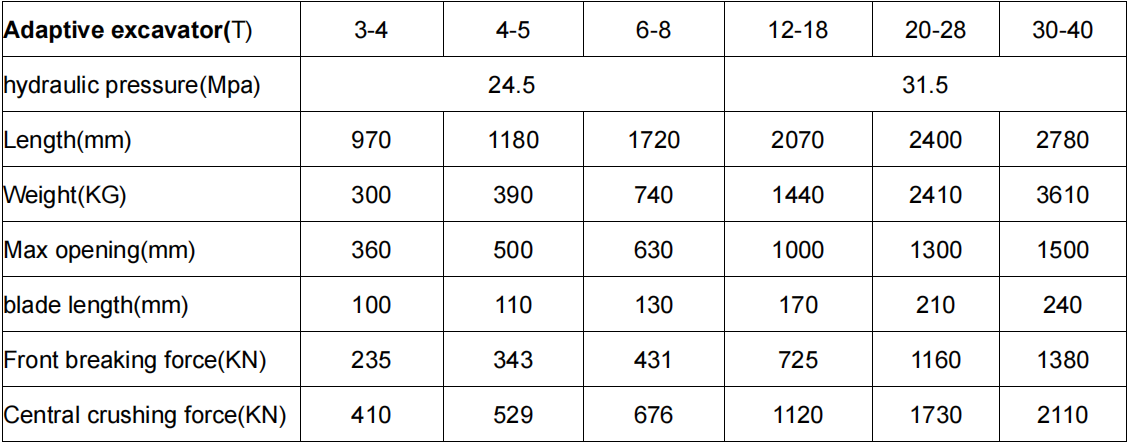

Product size：

Product Application：
